Hydraulic Top Link Components: What the Parts Are and What They Do
Have you ever tried to order hydraulic top link parts? If you’ve seen terms like K80 ball end, clevis, and adapter bushing and felt confused, this post is for you.
Here's a simple overview of the main components, what they do, and what to consider before you order.
The Ball Ends: K50 and K80
The ball end is what connects the top link to the tractor or implement. It is a ball that sits in a matching socket, allowing the link to pivot as the implement moves.
K50 and K80 refer to the diameter of the ball in millimetres. K50 is the smaller size, common on Cat. 1 and Cat. 2 hitches. K80 is the larger size, used on Cat. 3 and Cat. 4 applications with higher load requirements.
Getting the ball size wrong means the connection will not seat correctly. Always confirm your hitch category before ordering.
Clevis and Fork Rod

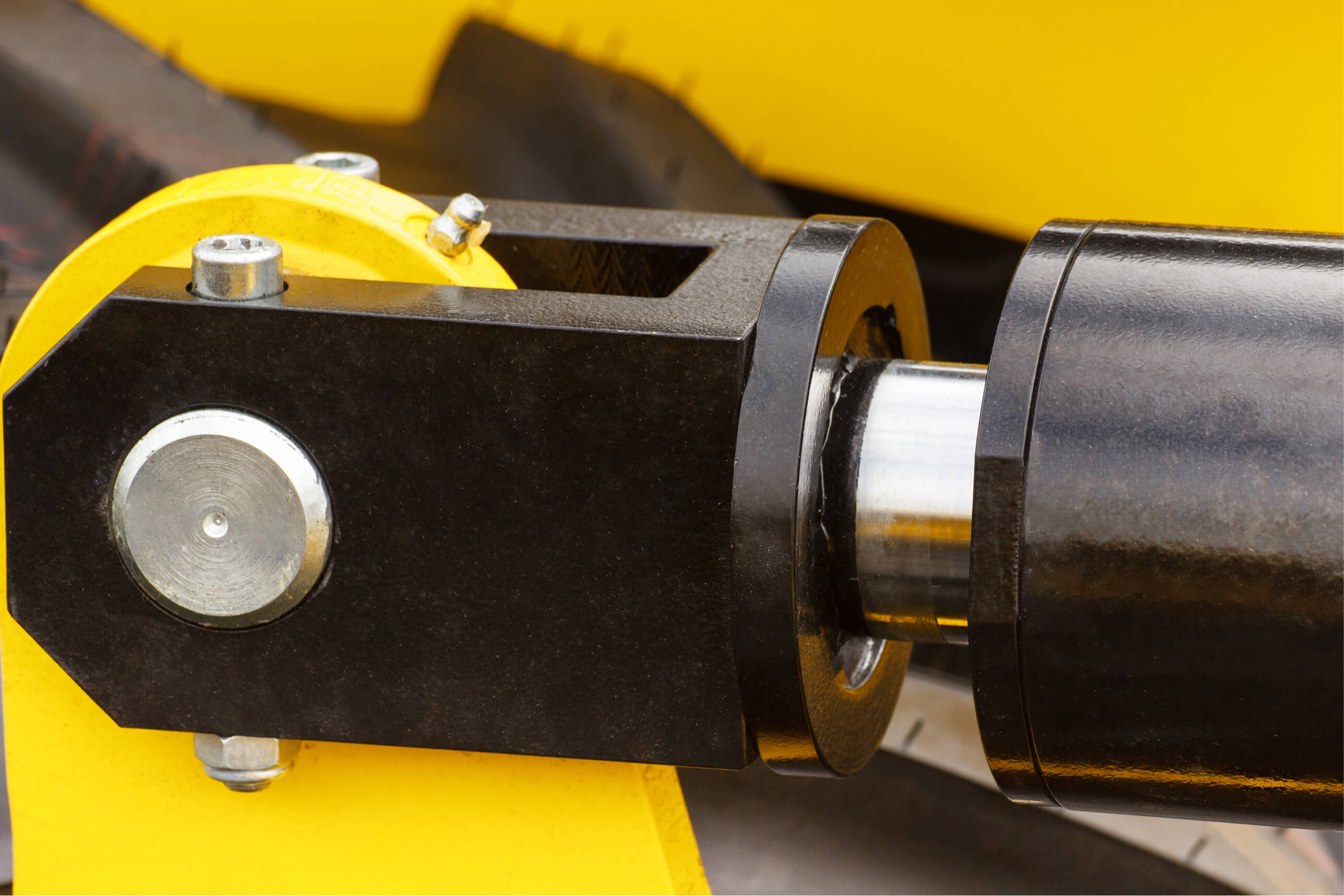

A clevis is a U-shaped connector with a pin through the open end. A hydraulic top link connects the cylinder to the tractor or implement side, depending on the setup.
A fork rod does the same job but with a forked rather than looped end, letting the pin pass through two parallel ears. Which one you need depends on how your tractor and implement are set up.
Top Link Hooks and Lower Link Hooks
Top link hooks are the fixed mounting points on the tractor or implement side that the ball end connects to. They come in weld-on versions, permanently attached to a frame, and bolt-on versions.
Lower link hooks serve the same purpose on the lower arms of the three-point hitch. When you build a front hitch setup, include lower link balls and hooks. They are key parts, along with the top link hardware.
Bushings, Spacers and Ball Guides
These are the parts that most often get overlooked until something wears out or does not fit right.
Bushings, like adapter and ball bushings, fill the space between a pin or ball and its housing. They take the wear so the housing does not. When a connection starts to feel loose or sloppy, a worn bushing is usually the reason.
Ball guides and cones seat the ball correctly by preventing movement during hookup, which is essential for front hitches and solo connections.
Spacers help position components on a pin. This adjustment ensures the geometry fits your tractor and implement combination.
Category Compatibility: Cat. 1 Through Cat. 4
Cat. 1 through Cat. 4 refer to the standard sizes of three-point hitch parts. This includes pin diameters, ball sizes, and load ratings. The higher the number, the larger and heavier the components.
Most compact and utility tractors run Cat. 1 or Cat. 2. Larger agricultural tractors typically use Cat. 3 or Cat. 4. Mixing categories without the right adapter bushing leads to a bad fit. This can cause the connection to fail when under load.
The same category system applies to front hitch setups. Sauter and similar front hitch systems use the same ball and hook components as rear hitch setups, so compatibility works the same way.
Frequently Asked Questions
How do I know what category my hitch is?
Check your tractor's operator manual. You can also measure the lower link pin diameter. Cat. 1 uses a 22mm pin, Cat. 2 uses 28mm, Cat. 3 uses 37mm, and Cat. 4 uses 51mm.
What is the difference between a weld-on hook and a bolt-on hook?
Weld-on hooks attach permanently to a frame or toolbar. They are usually stronger, making them great for heavy-duty jobs. Bolt-on hooks are removable and easier to replace or reposition. Which you need depends on your implement's mounting setup.
Can I use an adapter bushing to make a K80 ball work in a K50 socket?
In some cases yes, with the right adapter. But confirm that the load rating of the smaller socket suits the application before doing so. If you are not sure, give us a call and we can tell you what will work safely for your setup.
